Online Demo - Add a Replica Print Release Station (Download)



Option 1: On Primary Print Relese Station, the printer is configured for direct printing (print to the same printer)

Option 2: On Primary Print Relese Station, the printer is configured for pull printing (follow me printing, print to a different printer)



Option 1: On Primary Print Relese Station, the printer is configured for direct printing (print to the same printer)

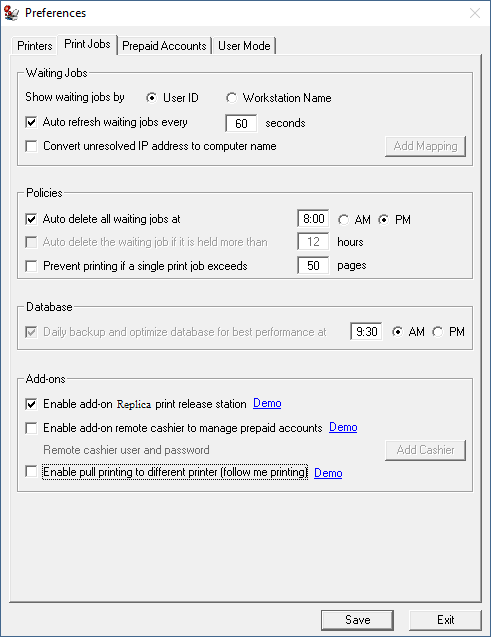

Step 1. On Primary Print Release Station, go to Preferences -> Print Jobs, select "Enable add-on Replica Print Release Station", click Save, and then click Exit.





Step 2. On a computer that will be a Replica Print Release Station

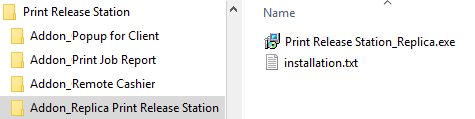

2.1 Double click Print Release Station_Replica.exe to install Replica Print Release Station.





2.2  Choose Start -> Printers and Faxes (or Devices and Printers).



2.3  Click "Add a printer" button to start the Add Printer Wizard, and then click Next.

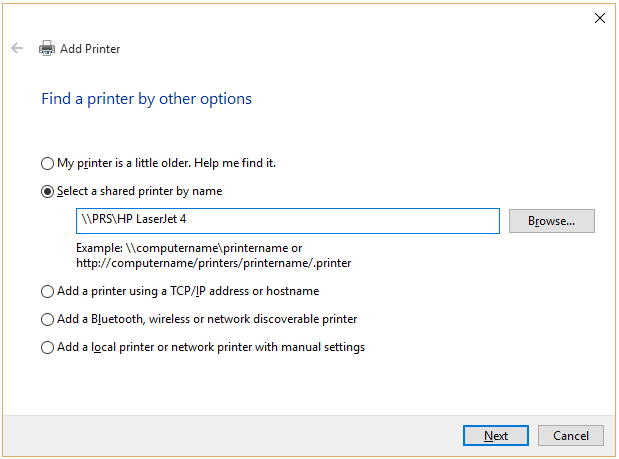

2.4  Click the "Select a shared printer by name" option and follow the instructions on screen.

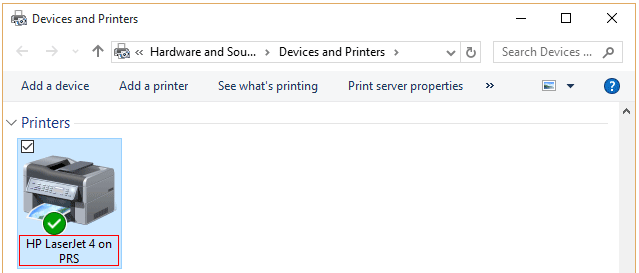

2.5 The printer icon will be added to the Printers and Faxes folder (or Devices and Printers folder).  The network printer name is like "Printer-Name on Print-Server-Name".

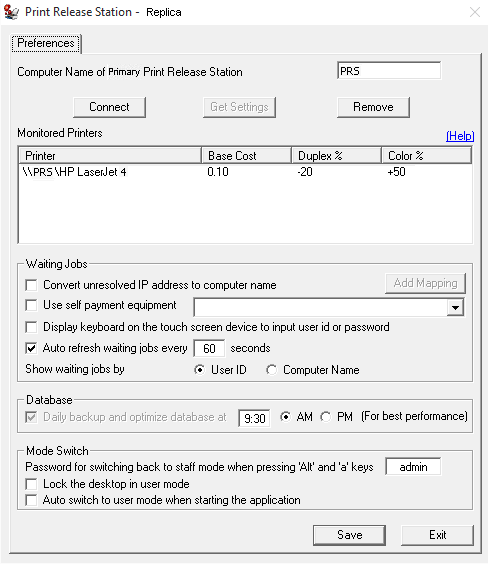

2.6   Select menu Print Jobs --> Preferences, enter the IP address or computer name of print server where Primary Print Release Station is installed, then click "Connect" and "Get Settings" button.

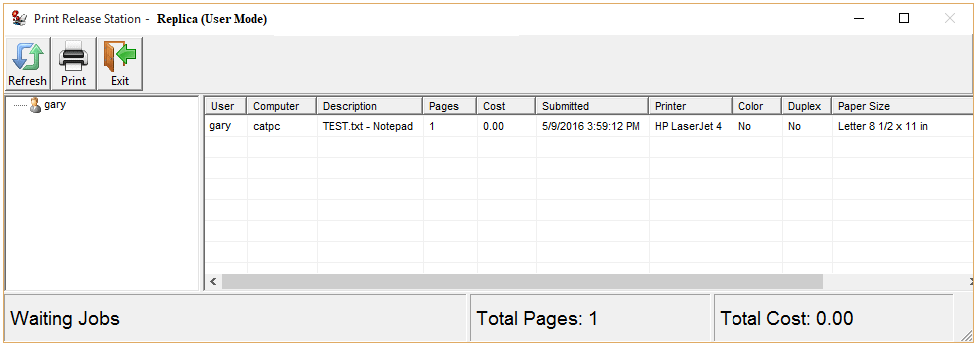

Step 3. Send a print job from a workstation to the network printer (For exmaple \\PRS\HP LaserJet 4). The print job is held on both Primary Print Release Station and Replica Print Release Station. You can click Print button to release it from either Primary Print Release Station or Replica Print Release Station.



print control



Option 2: On Primary Print Relese Station, the printer is configured for pull printing (follow me printing, print to a different printer)

pull printing

Follow above step 2.2 to step 2.6 to add printer \\PRS\Source Printer and \\PRS\Destination Printer A to the Replica Print Release Station

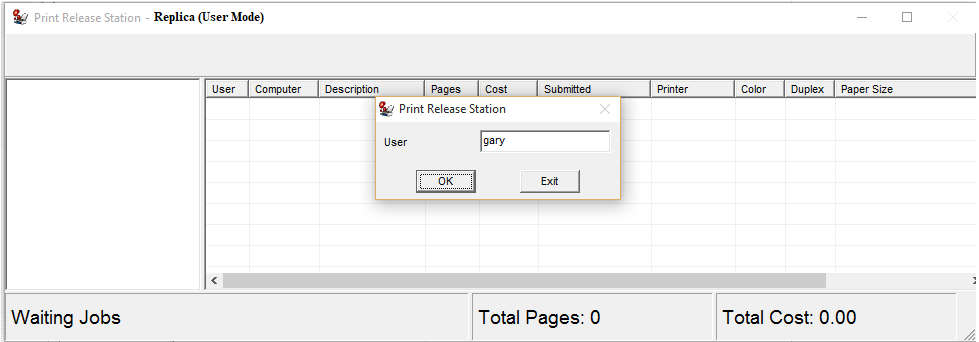

On Replica Print Release Station, users can release their print jobs to printer "Destination Printer A".

follow me print
